This file is the product specification of Philips Semiconductors Triacs BT134 series, introducing the characteristics of BT134 series triacs, including the maximum reverse blocking voltage, rated DC current, maximum non-repetitive peak off-state current, peak gate current and other parameters.

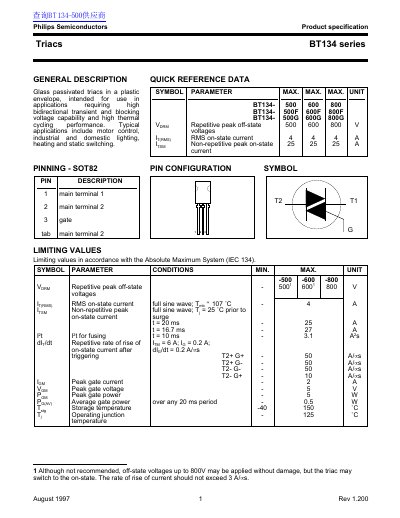

This document is a product specification datasheet for the Philips BT134 series of glass passivated triacs. These devices are designed for applications requiring high bidirectional transient and blocking voltage capability, as well as high thermal cycling performance. Typical applications include motor control, industrial and domestic lighting, heating, and static switching.
| Package Type | SOT82 |
|---|---|
| Maximum Repetitive Peak Off-State Voltage | 500V / 600V / 800V |
| Maximum RMS On-State Current | 4 A |
| Maximum Operating Junction Temperature | 125 °C |
| Maximum Storage Temperature | -40 to 150 °C |
| Net Mass | 0.8 g |
The maximum operating junction temperature is 125 °C.
No, these products are not designed for use in life support appliances or systems where malfunction can result in personal injury.
