This document describes the features and characteristics of Philips Semiconductors BT134 series D logic level Triacs, including glass passivated, sensitive gate, repetitive peak off-state voltages, RMS on-state current, non-repetitive peak on-state current, etc.

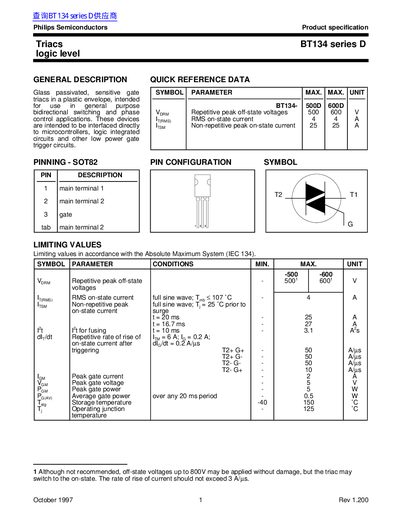

This document is a product specification datasheet for the Philips BT134 series D logic level triacs. These devices are glass passivated triacs in a plastic envelope intended for general purpose bidirectional switching and phase control applications.
The triacs are designed to be interfaced directly with microcontrollers, logic integrated circuits, and other low power gate trigger circuits. The datasheet provides quick reference data including maximum off-state voltages of 500V or 600V RMS, on-state currents up to 4A, and non-repetitive peak currents of 25A.
| Repetitive peak off-state voltages | 500 V or 600 V RMS |
|---|---|
| Non-repetitive peak on-state current | 25 A |
| Operating junction temperature | -125 °C |
| Storage temperature | -40 to 150 °C |
