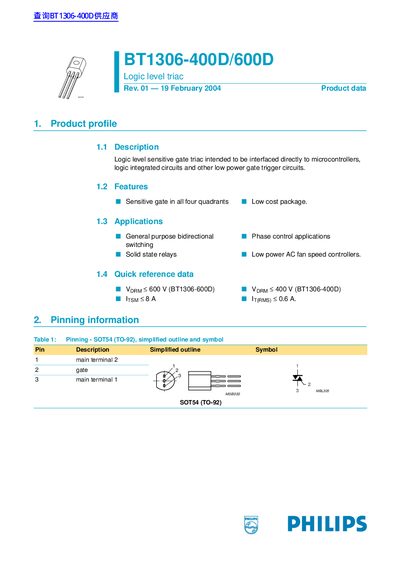

BT1306-400D/600D Logic level triac is a logic level sensitive gate triac intended to be interfaced directly to microcontrollers, logic integrated circuits and other low power gate trigger circuits.
This document is a product datasheet for the Philips BT1306 series of logic level triacs. These devices are designed as sensitive gate triacs intended to be interfaced directly with microcontrollers, logic integrated circuits, and other low power gate trigger circuits. The series includes two variants: the BT1306-400D with a peak off-state voltage of 400V and the BT1306-600D with 600V.
| Peak off-state voltage (BT1306-600D) | < 600 V |
|---|---|
| On-state current (RMS value) | < 0.6 A |
| Non-repetitive peak on-state current | 8 A (t=20 ms) |
| Thermal resistance junction-to-lead | 60 K/W (full cycle) |
The maximum repetitive peak off-state voltage is 400 V.
The maximum permissible on-state current is 0.6 A.
