BT131 series logic level triacs are passivated, sensitive gate triacs in a plastic envelope, intended for use in general purpose bidirectional switching and phase control applications. These devices are intended to be interfaced directly to microcontrollers, logic integrated circuits and other low power trigger circuits.

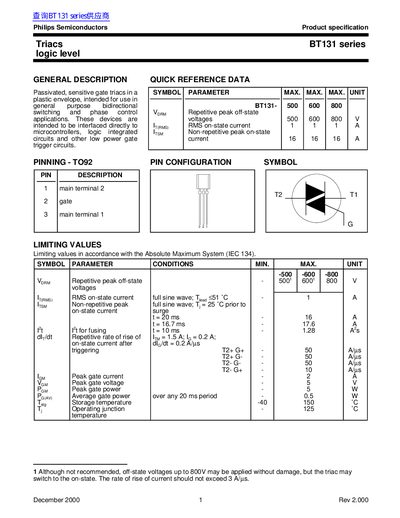

This document is a product specification datasheet for the BT131 series of passivated, sensitive gate triacs manufactured by Philips Semiconductors. These devices are designed in a plastic envelope for general-purpose bidirectional switching and phase-control applications, intended to be interfaced directly with microcontrollers and logic circuits.
| Package Type | TO92 plastic envelope |
|---|---|
| Repetitive peak off-state voltages (Vorm) | 500 V / 600 V / 800 V |
| RMS on-state current (Iorm) | 1 A |
| Operating junction temperature (Tj) | -40 to +125 °C |
| Gate trigger current (IG) | 0.4 to 7 mA |
| Holding current (IH) | 1.3 to 8 mA |
Yes, they are intended to be interfaced directly to microcontrollers, logic integrated circuits and other low power gate trigger circuits.
The maximum operating junction temperature is 125 °C.
