The BT131W series is a logic level triac produced by Philips Semiconductors. It has a high sensitive gate and is suitable for surface mounting. It can be used for general bidirectional switching and phase control applications. These devices are intended to be interfaced directly to microcontrollers, logic integrated circuits and other low power gate trigger circuits.

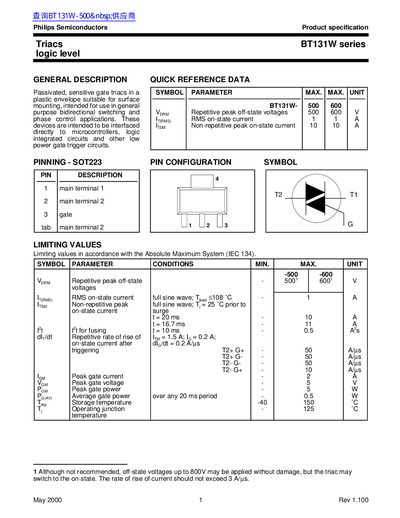

This document is a product specification for the BT131W series of logic level triacs by Philips Semiconductors. The devices are passivated, sensitive gate triacs in a plastic envelope suitable for surface mounting (SOT223 package). They are intended for use in general purpose bidirectional switching and phase control applications.
| Maximum Off-State Voltage (VDRM) | 500 V / 600 V |
|---|---|
| RMS On-State Current (IT(RMS)) | 1 A |
| Non-Repetitive Peak On-State Current (ITSM) | 10 A / 11 A |
| Storage Temperature (Tstg) | -40 to 150 °C |
The maximum RMS on-state current is 1 A.
The maximum storage temperature is 150 °C.
The maximum peak gate power is 5 W.
