BUK454-200A/B is a N-channel enhancement mode field-effect power transistor in a plastic envelope suitable for use in surface mount applications. The device is intended for use in Switched Mode Power Supplies (SMPS), motor control, welding, DC/DC and AC/DC converters, and in general purpose switching applications.

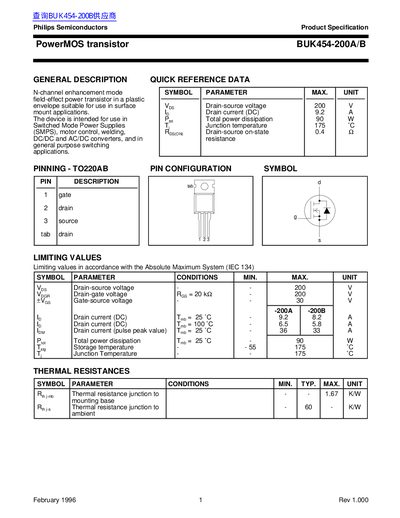

This datasheet describes the Philips BUK454-200A/B, an N-channel enhancement mode field-effect power transistor designed in a plastic TO220AB envelope. The device is intended for use in switched-mode power supplies (SMPS), motor control, welding, and DC/DC or AC/DC converters.
| Drain-source voltage (Vos) | 200 V |
|---|---|
| Drain current (DC) at 25°C | 9.2 A |
| Total power dissipation (Prot) | 90 W |
| Junction temperature (Tj) | 175 °C |
| Package type | TO220AB |
The maximum total power dissipation is 90 W when the junction temperature is 25°C.
Pin 1 is the gate, Pin 2 is the drain, and Pin 3 is the source.
The maximum junction temperature is 175°C.
