BUK100-50GL is a logic level power MOSFET from Philips Semiconductors with an operating voltage of 50V, a continuous drain current of 13.5A and a total power dissipation of 40W. It is packaged in a TO220AB package.

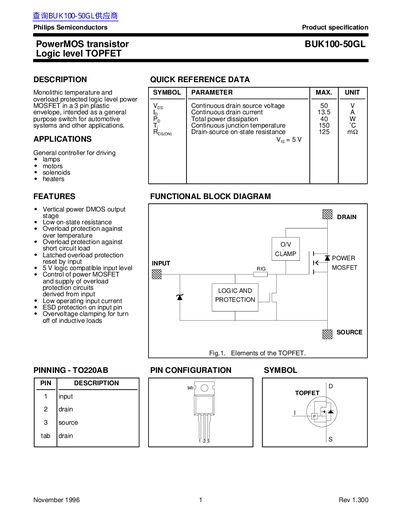

The document is a product specification datasheet for the Philips BUK100-50GL PowerMOS transistor. This device is described as a logic-level TOPFET in a 3-pin plastic envelope, intended as a general-purpose switch for automotive systems and other applications.
Key features include vertical power DMOS output stage technology with low on-state resistance. The component offers built-in overload protection against over-temperature and short-circuit loads, along with latched overload protection that is reset by the input pin. It also includes ESD protection on the input pin and overvoltage clamping for turn-off of inductive loads.
| Continuous drain source voltage | 50 V |
|---|---|
| Total power dissipation (25 °C) | 40 W |
| Continuous junction temperature | 150 °C |
The device remains latched off until it is reset by the input pin.
