BUK101-50GL Logic level TOPFET is a monolithic temperature and overload protected logic level power MOSFET in a 3 pin plastic envelope, intended as a general purpose switch for automotive systems and other applications.

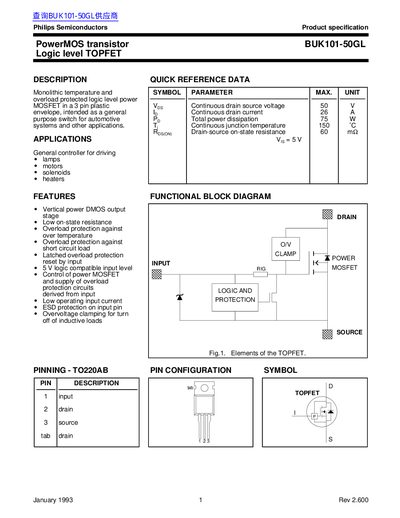

The document is a product specification datasheet for the Philips BUK101-50GL, described as a logic level TOPFET (PowerMOS transistor). It is designed as a general purpose switch for automotive systems and other applications, featuring monolithic temperature and overload protection. The device operates in a 3-pin plastic envelope.
| Continuous drain source voltage | 50 V |
|---|---|
| Continuous drain current (Tj=25°C) | 26 A |
| Total power dissipation (Tc=25°C) | 75 W |
| Continuous junction temperature | 150 °C |
| Drain-source on-state resistance (Vis=5V) | 60 mΩ |
It is intended as a general purpose switch for automotive systems and other applications, specifically for driving lamps, motors, solenoids, and heaters.
The maximum non-repetitive clamping energy (Epsm) is 625 mJ under specific conditions.
