BUK106-50L/S is a logic level TOPFET with temperature and overload protection. It is packaged in a 5-pin plastic package and is suitable for automotive systems and other applications.

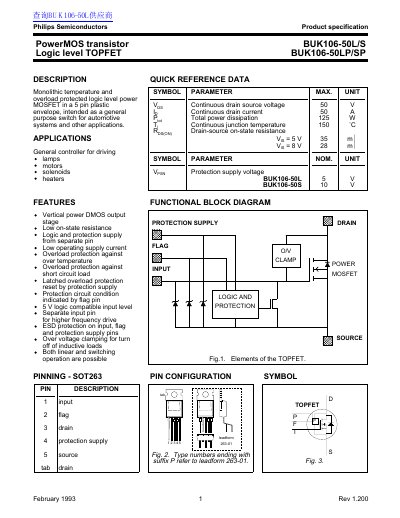

This document is a product specification datasheet for the Philips Semiconductors BUK106-50L/S and BUK106-50LP/SP, which are monolithic temperature and overload protected logic level power MOSFETs. These devices feature a vertical power DMOS output stage in a 5-pin plastic envelope (SOT263) designed as general-purpose switches for automotive systems.
| Continuous drain current (Ip) at Tj=25°C | 50 A |
|---|---|
| Continuous junction temperature (Tj) | 150 °C |
| Input threshold voltage (Vth) | 1.0 - 2.0 V |
| Forward transconductance (Dfs) | 17 - 28 S |
It is intended as a general purpose switch for automotive systems and other applications such as driving lamps, motors, solenoids, and heaters.
Yes, it includes overload protection against over temperature and short circuit load, which is latched until reset by the protection supply pin.
The device comes in a 5 pin plastic envelope known as SOT263.
