BUK107-50DL is a logic level TOPFET logic level power MOSFET with overload protection, suitable for automotive systems and other applications.

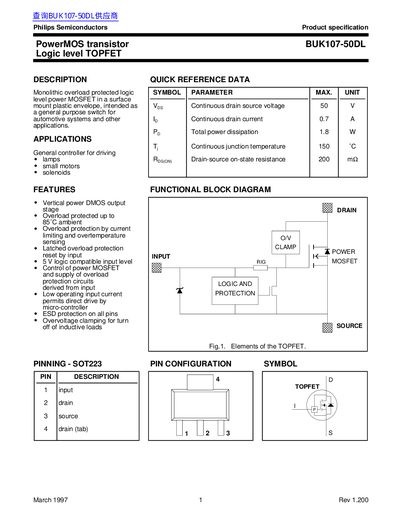

This document is a product specification for the Philips BUK107-50DL, a monolithic overload protected logic level power MOSFET in a surface mount plastic envelope. It is intended as a general purpose switch for automotive systems and other applications, featuring overload protection by current limiting and overtemperature sensing.
The datasheet provides detailed electrical characteristics, including limiting values, thermal characteristics, static and switching parameters, and typical performance curves. It also includes mechanical data for the SOT223 package and mounting instructions for printed circuit boards.
| Continuous drain source voltage | 50 V |
|---|---|
| Continuous drain current | 0.7 A |
| Drain-source on-state resistance | 200 mQ |
| Total power dissipation | 1.8 W |
| Continuous junction temperature | 150 °C |
| Package type | SOT223 |
The maximum continuous drain source voltage is 50 V.
The total power dissipation is 1.8 W when the ambient temperature is 25 °C.
The maximum continuous junction temperature for normal operation is 150 °C.
