The BUK108-50GL is a temperature and overload protected logic level power MOSFET, suitable for automotive systems and other applications. It features low on-state resistance, overload protection, and ESD protection.

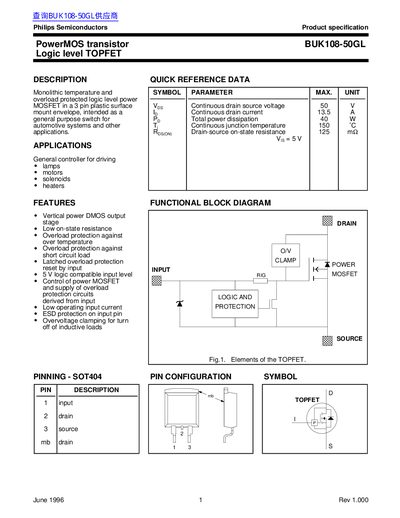

The Philips BUK108-50GL is a monolithic temperature and overload protected logic level power MOSFET in a 3-pin plastic surface mount envelope. It is designed as a general-purpose switch for automotive systems and other applications, featuring a vertical power DMOS output stage.
| Continuous drain source voltage | 50 V |
|---|---|
| Continuous drain current | 13.5 A |
| Total power dissipation | 40 W |
| Continuous junction temperature | 150 °C |
| Drain-source on-state resistance | 125 mΩ |
The device features a 5 V logic compatible input level.
