This document is a detailed specification sheet for the BUK107-50DS power MOSFET produced by PHILIPS. The product is a logic-level power MOSFET with overload protection and is suitable for automotive systems and other applications.

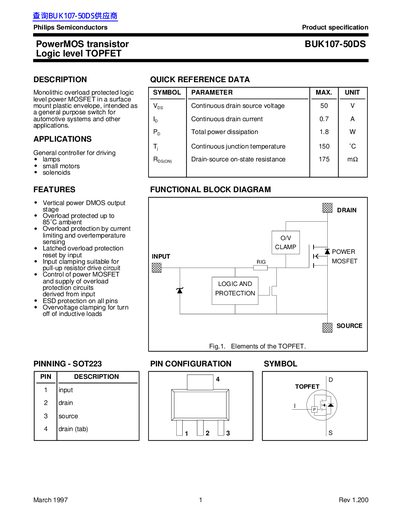

This document is a product specification for the Philips BUK107-50DS, a monolithic overload-protected logic level power MOSFET (TOPFET). It is designed as a general-purpose switch for automotive systems and other applications, intended for surface mount plastic packaging.
The device includes features such as vertical power DMOS output stage, overload protection via current limiting and overtemperature sensing, and latched overload protection reset by the input. It is suitable for driving lamps, small motors, and solenoids.
| Continuous drain source voltage | 50 V |
|---|---|
| Continuous drain current | 0.7 A |
| Drain-source on-state resistance | 175 mΩ |
| Total power dissipation | 1.8 W |
| Continuous junction temperature | 150 °C |
| Package type | SOT223 |
The maximum continuous drain current is 0.7 A.
The maximum total power dissipation is 1.8 W.
The maximum continuous junction temperature is 150 °C.
