BUK101-50DL is a logic level power MOSFET manufactured by Philips Semiconductors. It features low on-state resistance, over temperature protection and short circuit protection. It is suitable for automotive systems and other applications.

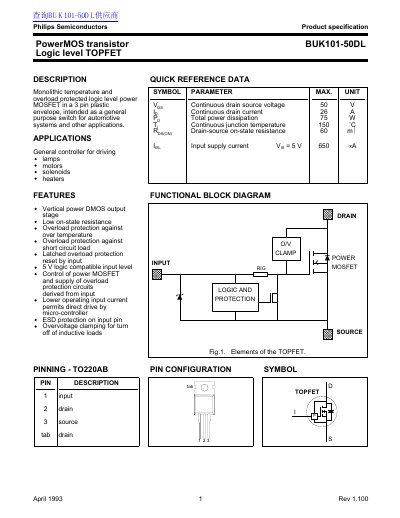

The Philips BUK101-50DL is a monolithic temperature and overload protected logic level PowerMOS transistor packaged in a 3-pin plastic TO220AB envelope. It is designed as a general-purpose switch for automotive systems and other applications, featuring overload protection against over-temperature and short circuits, as well as overvoltage clamping for inductive loads.
| Continuous drain source voltage | 50 V |
|---|---|
| Continuous drain current (Tmb ≤ 25 °C) | 26 A |
| Total power dissipation (Tmb ≤ 25 °C) | 75 W |
| Continuous junction temperature | 150 ˚C |
| Drain-source on-state resistance | 60 m Ω |
| Input supply current (VIS = 5 V) | 650 µA |
| Package type | TO220AB |
Yes, it includes overload protection against over temperature and short circuit load.
The maximum continuous junction temperature is 150 ˚C.
