BUK107-50GL is a general purpose switch power MOSFET for automotive systems and other applications. It features overload protection and is suitable for driving lamps, small motors, solenoids, and more.

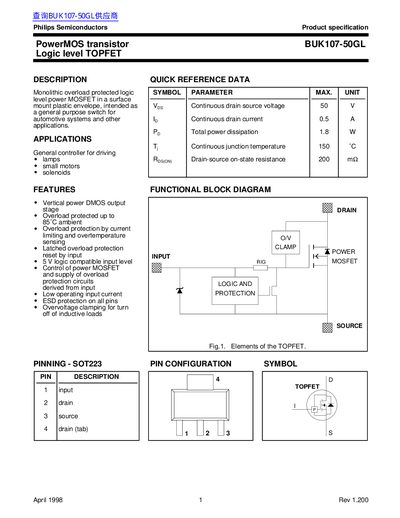

The document describes the BUK107-50GL, a logic-level PowerMOS transistor in a surface mount plastic envelope. It is designed as a general-purpose switch for automotive systems and other applications, featuring vertical DMOS output stage technology.
Key characteristics include overload protection via current limiting and overtemperature sensing, with reset capability through the input pin. The device operates with 5 V logic compatible input levels and includes ESD protection on all pins.
| Continuous drain source voltage | 50 V |
|---|---|
| Continuous drain current | 0.5 A |
| Drain-source on-state resistance | 200 mQ |
| Total power dissipation | 1.8 W |
| Continuous junction temperature | 150 °C |
| Package type | SOT223 |
The device switches off to protect itself and remains latched off until it is reset by the input pin.
Yes, it features a 5 V logic compatible input level for controlling the power MOSFET and supply of overload protection circuits.
