The product is BUK100-50DL, a logic level power MOSFET with temperature and overload protection functions, which can be used in automotive systems and other scenarios.

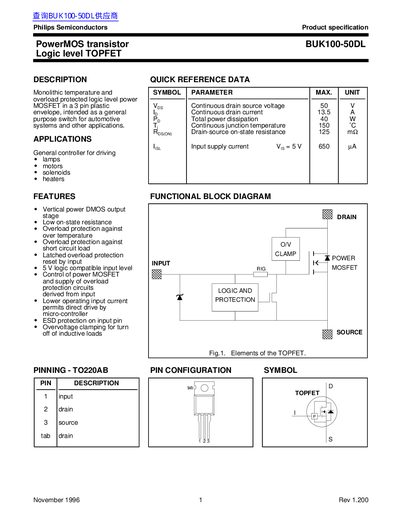

This document is a product specification for the Philips BUK100-50DL, a monolithic temperature and overload protected logic level power MOSFET. It is designed as a general purpose switch for automotive systems and other applications, featuring a 3-pin plastic envelope.
| Continuous drain source voltage | 50 V |
|---|---|
| Continuous drain current | 13.5 A |
| Total power dissipation | 40 W |
| Continuous junction temperature | 150 °C |
| Drain-source on-state resistance | 125 mΩ |
| Input supply current | 650 µA |
The device supports a maximum continuous drain current of 13.5 A when the junction temperature is 25°C.
The maximum total power dissipation is 40 W when the case temperature is 25°C.
The device can be stored between a minimum of -55°C and a maximum of 150°C.
