The LMC6009 is a 9-channel buffer amplifier for TFT-LCD from TI. It can operate at both 3.3V and 5V power supplies, supports 130mA output current, and has high output current capability and fast settling characteristics.

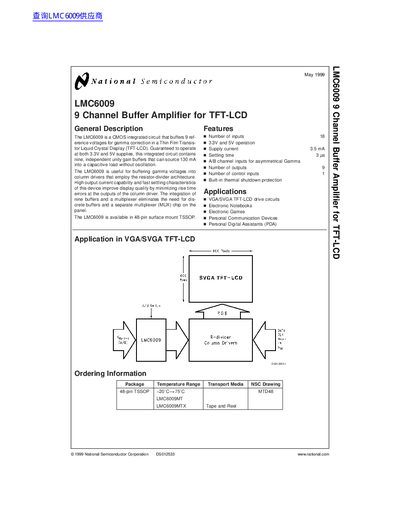

The LMC6009 is an integrated circuit designed to buffer nine reference voltages for gamma correction in Thin Film Transistor Liquid Crystal Displays (TFT-LCDs). It features nine independent unity gain buffers capable of sourcing 130 mA into a capacitive load without oscillation, ensuring fast settling characteristics and minimizing rise time errors. The device operates at both 3.3V and 5V supplies.
| Number of inputs | 18 |
|---|---|
| Supply voltage operation | 3.3V and 5V |
| Supply current (no load) | 3.5 mA |
| Settling time | 3 us |
| Number of outputs | 9 |
| Package type | 48-pin TSSOP |
The device can operate with a supply voltage up to 5.5V.
It is guaranteed to source 130 mA without oscillation.
