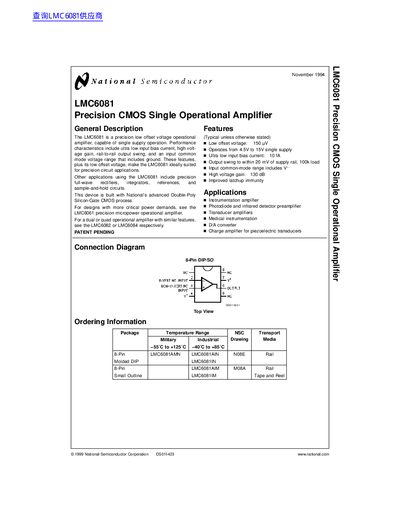

The LMC6081 is a precision low offset voltage operational amplifier that is capable of single supply operation. Performance characteristics include ultra low input bias current, high voltage gain, rail-to-rail output swing, and an input common mode voltage range that includes ground.
The LMC6081 is a precision low offset voltage operational amplifier capable of single supply operation. Key performance characteristics include ultra-low input bias current, high voltage gain, rail-to-rail output swing, and an input common-mode voltage range that includes ground. These features make the device ideally suited for precision circuit applications such as instrumentation amplifiers, integrators, and sample-and-hold circuits.
| Input Offset Voltage | 150 µV (Typical) |
|---|---|
| Input Bias Current | 10 fA (Typical) |
| Supply Voltage Range | 4.5V to 15V |
| Voltage Gain | 130 dB (Typical) |
| Output Swing | Within 20 mV of supply rail |
| Gain-Bandwidth Product | 13 MHz |
| Input Resistance | >10 Tera Ω |
The typical input offset voltage is 150 µV.
The device operates from a single supply of 4.5V to 15V.
Available packages include 8-Pin Molded DIP, 8-Pin Surface Mount, and Small Outline.
