The LMC6022 is a low-power CMOS dual operational amplifier from National Semiconductor that uses an advanced Double-Poly Silicon-Gate CMOS process. It supports single-supply and dual-supply operation, has an input common-mode range that reaches V-, has very low input bias current, and operates from a power supply voltage range of +5V to +15V. The power consumption is only 0.5 mW.

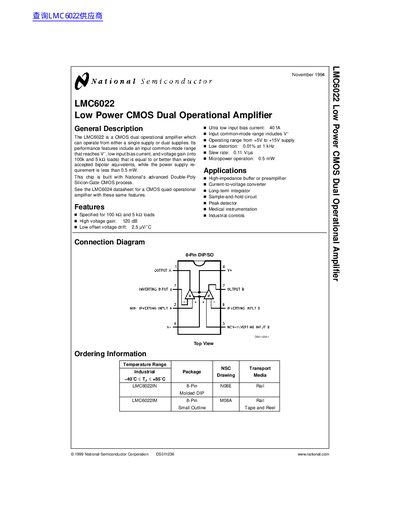

The document is a technical datasheet for the LMC6022, a CMOS dual operational amplifier manufactured by National Semiconductor. It describes the device's ability to operate from single or dual power supplies with an input common-mode range that reaches V-. Key features include high voltage gain (120 dB), ultra-low input bias current (40 fA), and low offset voltage drift.
| Input Bias Current | 40 fA typical, 200 pA max |
|---|---|
| Slew Rate | 0.11 V/μs typical |
| Operating Supply Voltage Range | +5V to +15V single supply |
The typical input bias current is 40 fA.
The device operates from a single supply range of +5V to +15V.
Yes, it features an input common-mode range that reaches V-.
