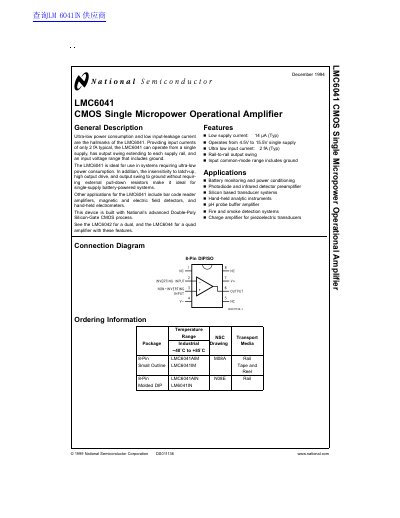

LMC6041 is a CMOS single-channel micropower operational amplifier with ultra-low power consumption and low input leakage current. It is ideal for systems requiring ultra-low power consumption and has features such as insensitivity to latch-up, high output drive, and output swing to ground. Other applications include bar code reader amplifiers, magnetic and electric field detectors, and hand-held electrometers.
The LMC6041 is a single-channel micropower operational amplifier designed for ultra-low power consumption and low input-leakage current. It operates from a single supply of 4.5V to 15.5V and features an input common-mode range that includes ground, making it ideal for battery-powered systems.
| Supply Current | 14 µA (Typ) |
|---|---|
| Operating Supply Voltage | 4.5V to 15.5V |
| Input Current | 2 fA (Typ) |
| Output Swing | Rail-to-rail |
| Input Common-Mode Range | Includes ground |
| Input Offset Voltage | 3 mV (Typ) |
| Input Bias Current | 0.002 pA (Typ) |
| Gain-Bandwidth Product | 75 kHz |
The typical supply current is 14 µA.
It operates from a single supply of 4.5V to 15.5V.
Yes, it features rail-to-rail output swing.
