LMC6062 is a low-power operational amplifier from National Semiconductor. It has low offset voltage, high gain, wide output swing and is suitable for battery powered applications.

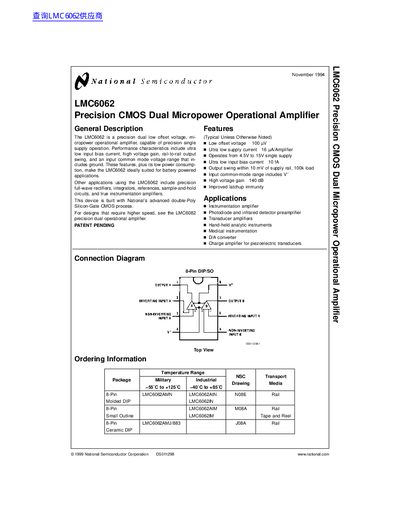

The LMC6062 is a precision dual low offset voltage, micropower operational amplifier capable of precision single-supply operation. It features ultralow input bias current, high voltage gain, rail-to-rail output swing, and an input common mode voltage range that includes ground. These features, plus its low power consumption, make the LMC6062 ideally suited for battery powered applications.
| Input Offset Voltage (Typical) | 100 µV |
|---|---|
| Supply Current (Typical) | 16 µA/Amplifier |
| Operating Supply Voltage | 4.5V to 15V |
| Input Bias Current (Typical) | 10 fA |
| Output Swing | within 10 mV of supply rail |
| Voltage Gain | 140 dB |
| Temperature Range (Military) | -55˚C to +125˚C |
| Temperature Range (Industrial) | -40˚C to +85˚C |
Applications include instrumentation amplifiers, photodiode preamplifiers, transducer amplifiers, and medical instrumentation.
Yes, its low power consumption and micropower design make it ideally suited for battery powered applications.
The input common mode voltage range includes ground (V−).
