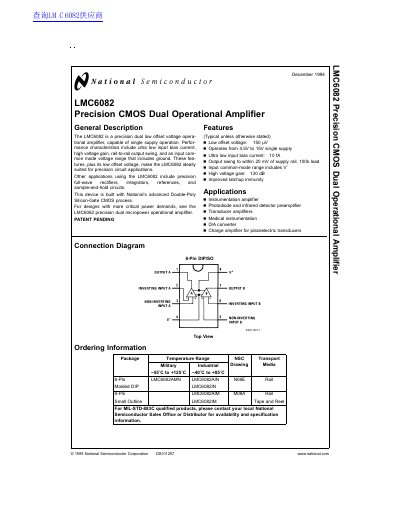

LMC6082 is a precision CMOS dual operational amplifier with features such as low offset voltage, single supply operation, ultra low input bias current, high voltage gain, rail-to-rail output swing, and an input common mode voltage range that includes ground. This product is ideally suited for precision circuit applications and can also be used in precision full-wave rectifiers, integrators, references, and sample-and-hold circuits.
The LMC6082 is a precision dual low offset voltage operational amplifier capable of single supply operation. It features ultra-low input bias current, high voltage gain, and an input common-mode range that includes ground.
This device is built with National's advanced Double-Poly Silicon-Gate CMOS process. Typical applications include instrumentation amplifiers, photodiode preamplifiers, transducer amplifiers, medical instrumentation, D/A converters, and charge amplifiers for piezoelectric transducers.
| Input Offset Voltage (Typ) | 150 µV |
|---|---|
| Supply Voltage Range | 4.5V to 15V |
| Input Bias Current (Typ) | 0.010 pA |
| Voltage Gain (Typ) | 130 dB |
The device can operate from a single supply of up to 15V.
The typical input bias current is 10 fA.
