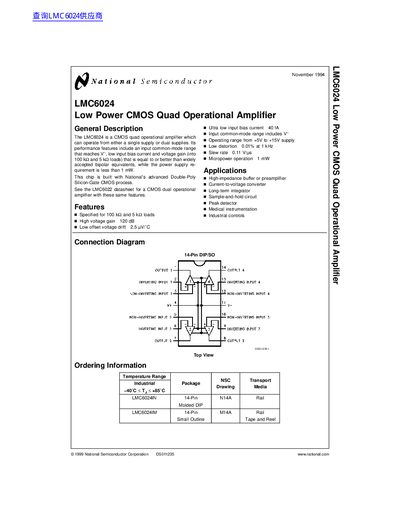

The LMC6024 is a low power CMOS quad operational amplifier from National Semiconductor Corporation. It can operate with single or dual supplies, the input common-mode range includes V-, the input offset voltage drift is less than 2.5µV/℃, the input bias current is low to 40fA, the operating voltage range is +5V to +15V, the distortion is less than 0.01%, and the micropower operation has a power consumption of less than 1mW.
The LMC6024 is a CMOS quad operational amplifier designed for low power consumption and high voltage gain. It features an input common-mode range that includes the negative supply rail and is suitable for applications such as high-impedance buffers, current-to-voltage converters, and medical instrumentation. The device operates from single or dual supplies ranging from +5V to +15V.
| Voltage Gain | 120 dB |
|---|---|
| Input Bias Current | 40 fA |
| Input Offset Voltage Drift | 2.5 µV/˚C |
| Power Supply Range | +5V to +15V |
| Low Distortion | 0.01 %at 1 kHz |
| Slew Rate | 0.11 V/µs |
| Power Consumption | 1 mW |
| Temperature Range | −40˚C to +85˚C |
| Package | 14-Pin N14A Rail Molded DIP |
The input common-mode range includes the negative supply voltage (V−).
Yes, it can operate from either a single supply or dual supplies.
The specifications are specified for loads of 100 kΩ and 5 kΩ.
