The LMC6061 is a high quality, low power operational amplifier with low offset voltage, high voltage gain, high output swing, and high common mode voltage range. It is ideal for battery powered applications.

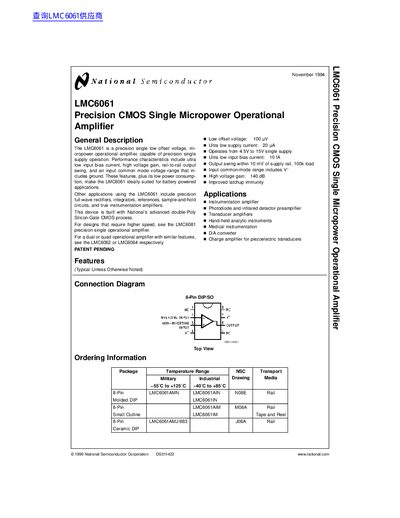

The LMC6061 is a precision single low offset voltage, micropower operational amplifier capable of precision single supply operation. It features ultra-low input bias current, high voltage gain, rail-to-rail output swing, and an input common mode voltage range that includes ground. These features, plus its low power consumption, make the LMC6061 ideally suited for battery powered applications.
This device is built with National's advanced double-Poly Silicon-Gate CMOS process. Typical applications include instrumentation amplifiers, photodiode and infrared detector preamplifiers, transducer amplifiers, and medical instrumentation.
| Input Offset Voltage | 100 pV (Typical) |
|---|---|
| Supply Current | 20 pA (Typical) |
| Input Bias Current | 10 fA (Typical) |
| Output Swing | Within 10 mV of supply rail |
| Voltage Gain | 140 dB |
| Supply Voltage Range | 4.5V to 15V |
| Gain-Bandwidth Product | 100 kHz |
Applications include instrumentation amplifiers, photodiode and infrared detector preamplifiers, transducer amplifiers, hand-held analytic instruments, and medical instrumentation.
Yes, its low power consumption and ultra-low supply current make it ideally suited for battery powered applications.
The input common mode voltage range includes ground.
