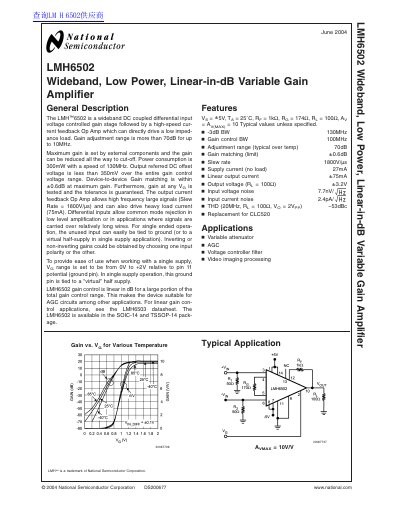

LMH6502 is a wideband, low power, linear-in-dB variable gain amplifier
The LMH6502 is a wideband, low power, linear-in-dB variable gain amplifier designed as a DC coupled differential input voltage controlled gain stage followed by a high-speed current feedback Op Amp. It can directly drive a low impedance load and offers a gain adjustment range of more than 70dB from up to 10MHz.
Key features include a maximum bandwidth of 130MHz, a slew rate of 1800V/us, and the ability to drive heavy load currents of 75mA. The device is available in SOIC-14 and TSSOP-14 packages and is suitable for applications such as variable attenuators, AGC circuits, and video imaging processing.
| -3dB Bandwidth | 130 MHz |
|---|---|
| Gain control bandwidth | 400MHz |
| Adjustment range (typical over temp) | 70dB |
| Gain matching (limit) | +0.6dB |
| Slew rate | 1800V/us |
| Supply current (no load) | 27 mA |
| Output voltage (AL = 100Ω) | +3.2V |
| Input voltage noise | 7.7 nV/√Hz |
The gain adjustment range is more than 70dB from up to 10MHz.
The device is available in SOIC-14 and TSSOP-14 packages.
