PEMB13 and PUMB13 are PNP/PNP transistors produced by PHILIPS with built-in bias resistors, which simplify circuit design, reduce component count and reduce pick and place costs.

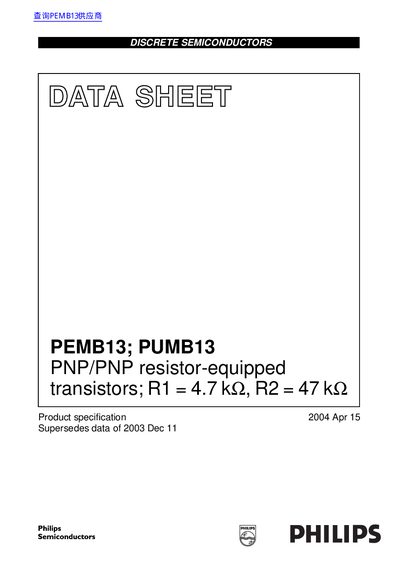

The document provides a product specification for the PEMB13 and PUMB13 series of PNP/PNP resistor-equipped transistors. These devices feature built-in bias resistors (R1 = 4.7 kΩ, R2 = 47 kΩ) to simplify circuit design and reduce component count. They are available in two plastic surface-mounted packages: SOT666 and SOT363.
| Collector-emitter voltage (VCEO) | -50 V |
|---|---|
| Output current (DC) | -100 mA |
| Bias resistor R1 | 4.7 kΩ |
| Bias resistor R2 | 47 kΩ |
| Total power dissipation (SOT363) | 200 mW |
| Total power dissipation (SOT666) | 200 mW |
| Storage temperature | -65 to +150 °C |
The PEMB13 is a plastic surface mounted package with 6 leads, designated as SOT666.
The PUMB13 is a plastic surface mounted package with 6 leads, designated as SOT363.
