PUMB3 is a PNP double transistor with built-in bias resistor R1 (typ. 4.7 kΩ) produced by PHILIPS, widely used in general-purpose switching and amplification, inverter and interface circuits, circuit driver and other applications.

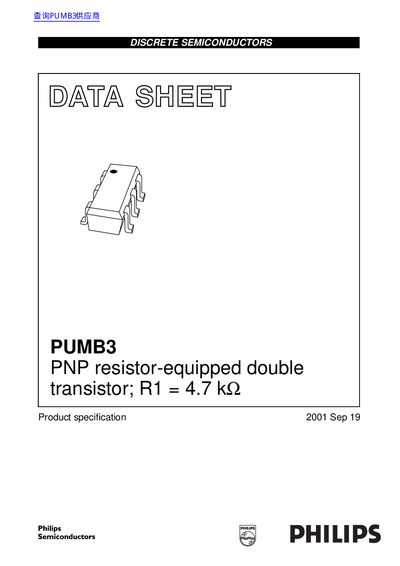

The Philips PUMB3 is a discrete semiconductor component consisting of two PNP transistors with a built-in bias resistor (R1 = 4.7 kΩ). This configuration simplifies circuit design by reducing the number of external components and board space, while preventing mutual interference between the transistors. The device is housed in a plastic SC-88 (SOT363) surface-mounted package.
| Collector-Emitter Voltage (VCEO) | -50 V |
|---|---|
| Peak Collector Current (ICM) | -100 mA |
| Bias Resistor (R1) | 4.7 kΩ |
| Package Type | SC-88 (SOT363) |
| Total Power Dissipation (Per Device) | 300 mW |
The transistor includes a built-in bias resistor with a typical value of 4.7 kΩ.
The maximum total power dissipation per transistor is 200 mW when the ambient temperature is below 25 °C.
The device can operate in ambient temperatures from -65 to +150 °C and be stored between -65 and +150 °C.
