Philips PEMB14; PUMB14 PNP/PNP Resistor-Equipped Transistors Datasheet

The document describes the product overview, features, and applications of PNP/PNP resistor-equipped transistors. The product features built-in bias resistors, simplifies circuit design, reduces component count, and reduces pick and place cost.

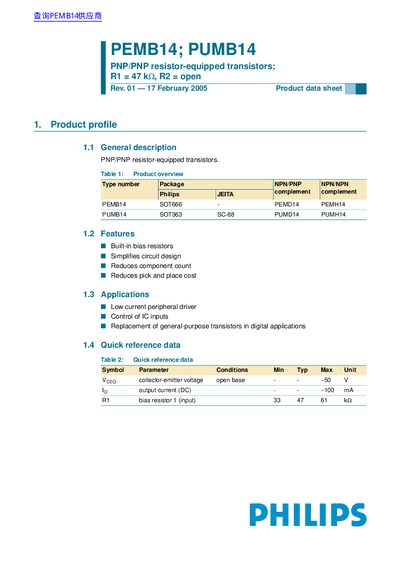

Philips PEMB14; PUMB14 PNP/PNP Resistor-Equipped Transistors Datasheet - cover page
Brand
Philips
Category
Other Electronics
Document type
Datasheet
Language
English
Pages
10
File format
PDF
File size
45 KB
Published
05 July, 2012
Updated
29 September, 2023
MD5 checksum
825DB5A387FB37EA864548B3DDD3F5A6

About this manual

This datasheet describes the Philips PEMB14 and PUMB14, which are PNP/PNP resistor-equipped transistors designed to simplify circuit design and reduce component count. These devices feature built-in bias resistors (R1 = 47 kΩ, R2 = open) and are suitable for low current peripheral driver applications and controlling IC inputs. They serve as replacements for general-purpose transistors in digital applications.

What's inside

  • Product profile
  • Pinning information
  • Ordering information
  • Limiting values
  • Thermal characteristics
  • Characteristics
  • Package outline
  • Packing information

Specifications

Collector-emitter voltage (Vceo)-50 V
Bias resistor 1 (R1)47 kΩ
Total power dissipation (SOT363)200 mW
Total power dissipation (SOT666)200 mW

Frequently asked questions

What is the value of the built-in input bias resistor?

The built-in input bias resistor (R1) has a typical value of 47 kΩ.

What is the maximum total power dissipation for the SOT666 package?

The maximum total power dissipation for the SOT666 package is 200 mW at an ambient temperature below 25 °C.

What is the maximum collector-emitter voltage rating?

The maximum collector-emitter voltage rating is 50 V.
