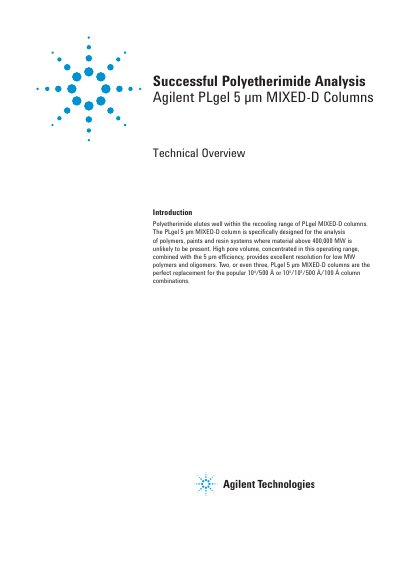

This document provides a technical overview of Agilent PLgel 5 μm MIXED-D columns, which are designed for the analysis of polymers, paints, and resin systems. These columns offer high pore volume and excellent resolution for low molecular weight polymers and oligomers.
This document provides a technical overview of Agilent PLgel 5 um MIXED-D columns, which are specifically designed for the analysis of polymers, paints, and resin systems where high molecular weight materials are unlikely to be present. The columns offer high pore volume and 5 um efficiency, providing excellent resolution for low molecular weight polymers and oligomers. They serve as a suitable replacement for popular 10*/500 A or 10'/10°/500 A/100 A column combinations.
| Particle Size | 5 um |
|---|---|
| Column Dimensions | 300 x 7.5 mm |
| Part Number | PL1110-6504 |
| Flow Rate | 1.0 mL/min |
| Eluent | DMF + 0.1% LiBr |
| Detection Method | Rl |
The sample should be dissolved by heating to approximately 70 °C.
The eluent used is DMF with 0.1% LiBr.
The flow rate for the analysis is 1.0 mL/min.
