Varian 610/620-IR is an infrared microscope manufactured by Varian company. It has excellent performance and can meet various application needs.

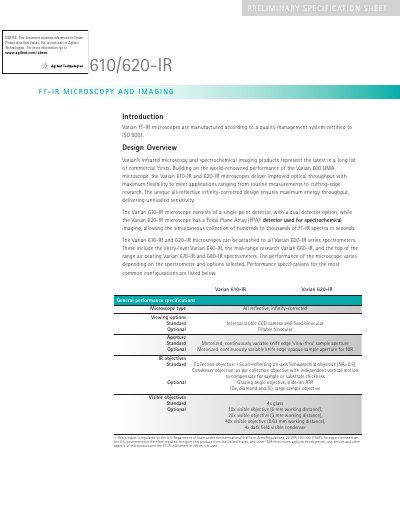

This document provides a design overview and general performance specifications for the Varian 610-IR and 620-IR FT-IR microscopes. The 610-IR features a single point detector, while the 620-IR utilizes a Focal Plane Array (FPA) detector for spectrochemical imaging. Both models are designed with an all-reflective infinity-corrected optical system to ensure maximum energy throughput and sensitivity.
| Microscope type | All reflective, infinity-corrected |
|---|---|
| Detector (610-IR Standard) | 250 ym narrow band MCT |
| Detector (620-IR Standard) | 16 x 16 Mid-IR MCT FPA |
| Collection objective (Standard) | 15x all-reflecting on-axis Schwarzchild objective (NA=0.5) |
| Stage (Standard) | Manual |
| Binocular eyepiece (Standard) | 10x |
| Microscope dimensions | 39.6 x 68.9 x 66.8 cm |
| Weight | 50 kg (110 pounds) |
| Warranty | 12 months |
They can be attached to all Varian 600-IR series spectrometers, including the 640-IR, 660-IR, 670-IR, and 680-IR.
The warranty is 12 months, though this may vary according to locations.
