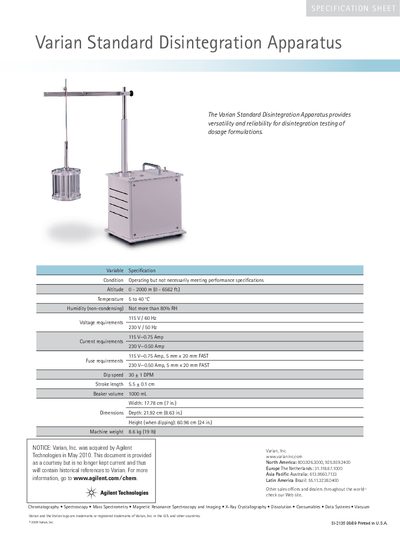

This document is the specification sheet of Varian Standard Disintegration Apparatus.
The Varian Standard Disintegration Apparatus is designed to provide versatility and reliability for the disintegration testing of dosage formulations. This document serves as a product leaflet, outlining the operational conditions and technical specifications of the device.
The apparatus operates within specific environmental limits, including an altitude of 0 to 2000 meters and a temperature range of 5 to 40°C. It supports both 115V/60Hz and 230V/50Hz voltage requirements with corresponding current and fuse specifications.
| Altitude | 0 - 2000 m (0 - 6562 ft.) |
|---|---|
| Temperature | 5 to 40°C |
| Humidity | Not more than 80% RH |
| Voltage requirements | 115V/ 60 Hz, 230 V/ 50 Hz |
| Current requirements (115V) | 0.75 Amp |
| Current requirements (230V) | 0.50 Amp |
| Fuse requirements (115V) | 0.75 Amp, 5 mm x 20 mm FAST |
| Fuse requirements (230V) | 0.50 Amp, 5 mm x 20 mm FAST |
| Dip speed | 30 + 1DPM |
| Stroke length | 5.540. cm |
| Beaker volume | 1000 mL |
| Width | 17.78 em (7 in.) |
| Depth | 21.92 cm (8.63 in.) |
| Height (when dipping) | 60.96 cm (24 in.) |
| Machine weight | 8.6 kg (19 Ib) |
It provides versatility and reliability for disintegration testing of dosage formulations.
The unit operates on 115V/60 Hz or 230 V/50 Hz.
The operating environment must have a non-condensing humidity of not more than 80% RH.
The stroke length is specified as 5.540. cm.
