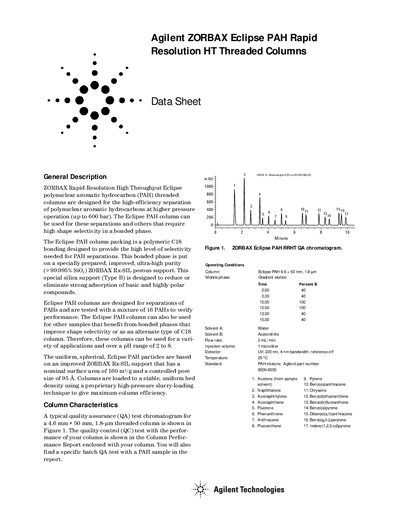

The document introduces ZORBAX Rapid Resolution High Throughput Eclipse polynuclear aromatic hydrocarbon (PAH) threaded columns designed for the high-efficiency separation of polynuclear aromatic hydrocarbons at higher pressure operation (up to 600 bar).
The Agilent ZORBAX Eclipse PAH Rapid Resolution High Throughput (RRHT) threaded columns are engineered for the high-efficiency separation of polynuclear aromatic hydrocarbons (PAHs) at higher pressure operations up to 600 bar. These columns utilize a polymeric C18 bonded phase on an ultra-high purity silica support, providing high shape selectivity and reduced adsorption of basic or highly polar compounds.
| Maximum Operating Pressure | 600 bar (9,000 psi) |
|---|---|
| Maximum Operating Temperature | 60 °C below pH 6 |
| pH Range | 2 to 8 |
| Particle Surface Area | 160 m²/g |
| Pore Size | 95 A |
The maximum operating pressure is 600 bar (9,000 psi).
These columns can be used over a pH range of 2 to 8.
