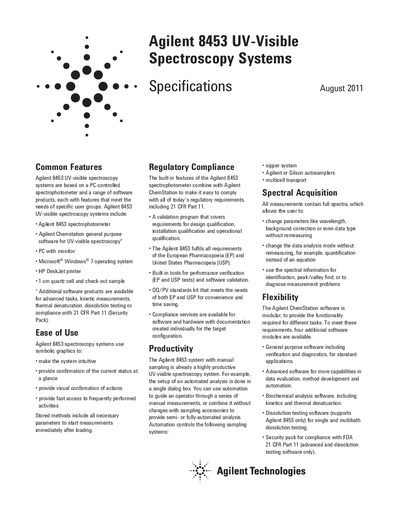

Agilent 8453 UV-visible spectroscopy systems are PC-controlled spectrophotometers with a range of software products. The systems use symbolic graphics for intuitive operation and provide fast access to frequently performed activities. They are compliant with 21 CFR Part 11 and meet regulatory requirements. The system includes Agilent 8453 spectrophotometer, Agilent Chemstation general purpose software, PC with Windows 7 operating system, HP DeskJet printer, etc.
This document describes the Agilent 8453 UV-visible spectroscopy systems, which consist of a PC-controlled spectrophotometer and a range of software products. The system is designed to meet the needs of specific user groups, offering features such as symbolic graphics for intuitive operation and stored methods for immediate measurement start.
| Wavelength range | 190-1100 nm |
|---|---|
| Slit width | 1nm |
| Wavelength accuracy | <+0.5 nm |
| Photometric accuracy | <+0.005 A |
| Typical scan time | 15s |
| Height | 185 mm |
| Weight | 16.5 kg |
| Line voltage | 90-264 V AC |
The software is compatible with Microsoft Windows XP Professional 32-bit, Windows Vista Professional 32-bit, Windows 7 Professional 32-bit, Windows Server 2003, and Windows Server 2008 32-bit.
The instrument operates within a wavelength range from 190 to 1100 nm.
The unit measures 185 x 344 x 560 mm, which is equivalent to 7.3 x 13.5 x 22.0 inches.
The system requires a line voltage of 90-264 V AC.
