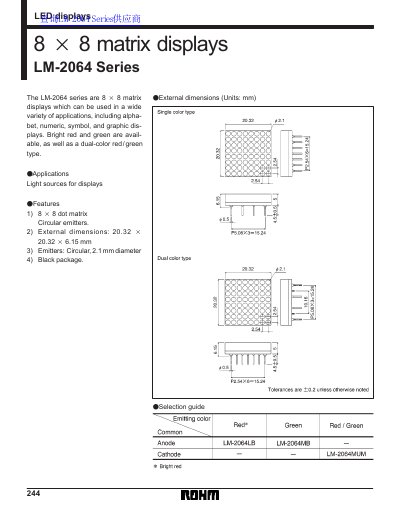

The LM-2064 series are 8 x 8 matrix displays which can be used in a wide variety of applications, including alphabet, numeric, symbol, and graphic displays. Bright red and green are available, as well as a dual-color red/green type.
The LM-2064 Series consists of 8 x 8 matrix LED displays designed for a wide variety of applications, including the display of alpha-bet, numeric, symbol, and graphic information. The series offers bright red and green options as well as a dual-color red/green type.
Key features include circular emitters with an external dimension of 20.32 x 20.32 x 6.15 mm and a black package. The document provides detailed pin assignments, internal circuit schematics, absolute maximum ratings, and electrical and optical characteristics for both single-color and dual-color types.
| Available Colors | Bright red, green and dual-color red/green |
|---|---|
| Emitter Diameter | 2.1 mm |
| Package Color | Black package |
The circular emitters have a diameter of 2.1 mm.
