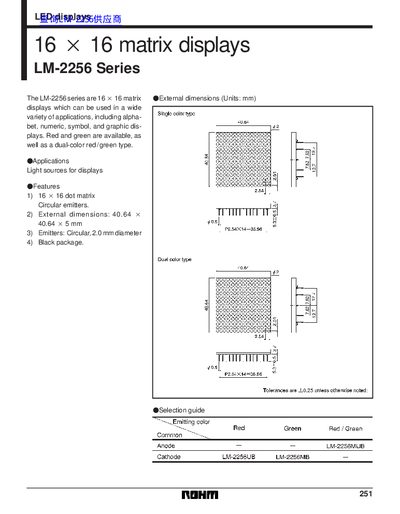

The LM-2256 series is a 16 x 16 dot matrix display that can be used in a variety of applications, including alphabet, numeric, symbol, and graphic displays. Red and green are available, as well as a dual-color red/green type.
The ROHM LM-2256 series consists of 16 x 16 dot matrix LED displays designed for a wide variety of applications, including alpha-numeric, symbol, and graphic displays. The series is offered in both single color (Red or Green) and dual-color (Red/Green) types.
| Dot Matrix Size | 16 x 16 |
|---|---|
| Emitter Diameter | 2.0 mm |
| Forward Current (IF) | 15 mA |
| Peak Forward Current (Iep) | 60 mA |
| Operating Temperature Range | -20~+50 C |
The emitters have a diameter of 2.0 mm.
The operating temperature range is -20 to +50 C and the storage temperature range is -25 to +75 C.
