RB705D is a Schottky barrier diode suitable for general purpose detection and high-speed switching applications. It features a small surface mount package, low reverse current, low forward voltage, and a common cathode configuration.

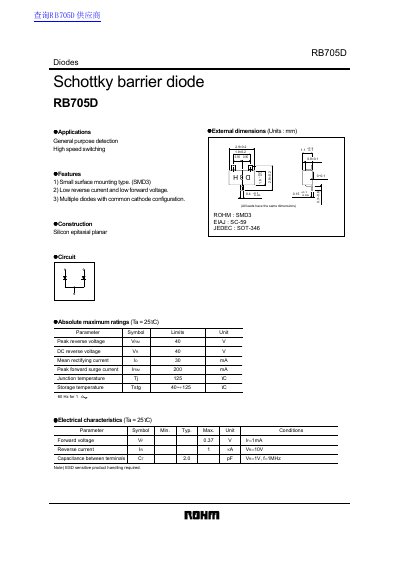

The document describes the ROHM RB705D as a silicon epitaxial planar Schottky barrier diode available in an SMD3 (SC-59/SOT-346) package. Key features include low reverse current, low forward voltage, and a multiple-diode structure with a common cathode configuration.
| Package Type | SMD3 (SC-59, SOT-346) |
|---|---|
| Typical Forward Voltage | 0.37 V |
| Maximum Reverse Current | 1 µA |
The absolute maximum junction temperature is 125 °C.
The typical forward voltage is 0.37 V when the forward current is 1 mA.
The maximum reverse current is 1 µA when the reverse voltage is 10 V.
