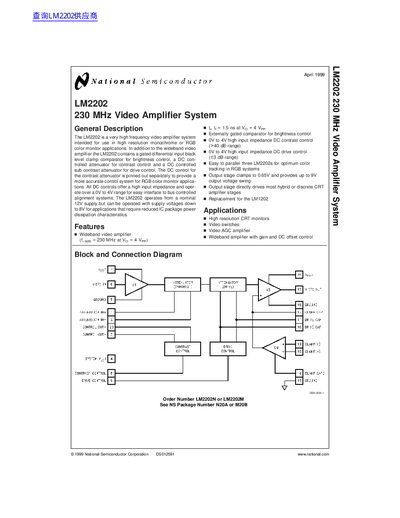

LM2202 is a very high frequency video amplifier system intended for use in high resolution monochrome or RGB color monitor applications. In addition to the wideband video amplifier, the LM2202 contains a gated differential input black level clamp comparator for brightness control, a DC controlled attenuator for contrast control and a DC controlled sub contrast attenuator for drive control. The DC control for the contrast attenuator is pinned out separately to provide a more accurate control system for RGB color monitor applications. All DC controls offer a high input impedance and operate over a 0V to 4V range for easy interface to bus controlled alignment systems. The LM2202 operates from a nominal 12V supply but can be operated with supply voltages down to 8V for applications that require reduced IC package power dissipation characteristics.
The LM2202 is a very high frequency video amplifier system intended for use in high resolution monochrome or RGB color monitor applications. In addition to the wideband video amplifier, it contains a gated differential input black level clamp comparator for brightness control, a DC controlled attenuator for contrast control, and a DC controlled sub contrast attenuator for drive control.
The device operates from a nominal 12V supply but can be operated with supply voltages down to 8V. It features externally gated comparators, high input impedance DC controls ranging from 0V to 4V, and an output stage that clamps to 0.65V providing up to 9V output voltage swing.
| Supply Voltage Range | 8V to 13.2V |
|---|---|
| Total Supply Current | 48 mA (typ) |
| Video Output Low Voltage | 0.2 V (typ) |
The LM2202 has a video amplifier bandwidth of 230 MHz when the output voltage is 4 Vpp.
The device operates from a nominal 12V supply but can be operated with supply voltages down to 8V.
The typical maximum video amplifier gain is 16 V/V.
