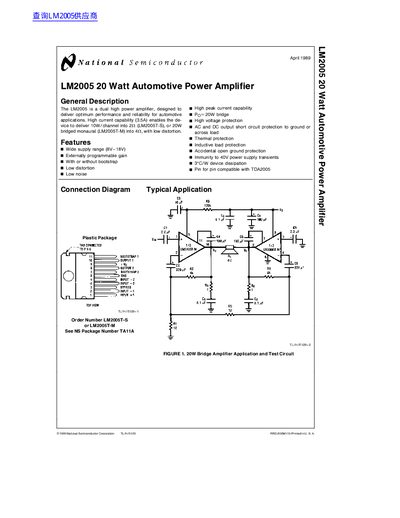

The LM2005 is a dual high power amplifier designed for automotive applications. It has high current capability (3.5A), delivering 10W/channel into 2X (LM2005T-S) or 20W bridged monaural (LM2005T-M) into 4X, with low distortion, low noise, and high peak current capability.
The document describes the LM2005, a dual high-power amplifier designed for automotive applications. It offers two configurations: the LM2005T-S for stereo operation delivering up to 10W per channel into 4Ω, and the LM2005T-M for bridged monaural operation delivering up to 20W into 4Ω.
Key features include a wide supply voltage range of 8V to 18V, externally programmable gain, low distortion, and robust protection mechanisms such as AC/DC output short-circuit protection, thermal shutdown, and inductive load protection. The device is pin-for-pin compatible with the TDA2005.
| Supply Voltage Range | 8V to 18V |
|---|---|
| Output Power (Bridged) | 20W into 4Ω |
| Output Power (Stereo) | 10W per channel into 4Ω |
| Operating Temperature Range | -40°C to +85°C |
| Peak Supply Voltage (50ms) | 40V |
| Output Current (Repetitive) | 3.5A |
Yes, it is pin-for-pin compatible with the TDA2005.
Yes, it includes AC and DC output short circuit protection to ground or across the load.
