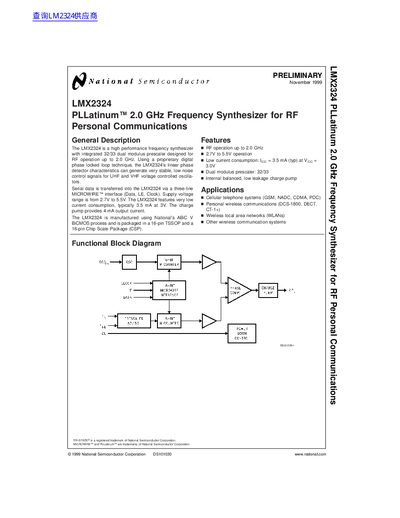

LMX2324 PLLatinum 2.0 GHz frequency synthesizer for RF personal communications
The LMX2324 is a high performance frequency synthesizer with an integrated 32/33 dual modulus prescaler designed for RF operation up to 2.0 GHz. It utilizes a proprietary digital phase locked loop technique to generate stable, low noise control signals for UHF and VHF voltage controlled oscillators (VCOs). The device features very low current consumption, typically 3.5 mA at 3V, and is manufactured using National's ABiC V BiCMOS process.
| Operating Frequency (RF) | 0.1 to 2.0 GHz |
|---|---|
| Supply Voltage Range | 2.7V to 5.5V |
| Typical Current Consumption | 3.5 mA at 3V |
| Charge Pump Output Current | 4 mA |
| Prescaler Ratio | 32/33 |
| Operating Temperature Range | -40°C to +85°C |
The device supports RF operation up to 2.0 GHz.
The recommended operating power supply voltage ranges from 2.7V to 5.5V.
The device features low current consumption, typically 3.5 mA at 3V.
