The IDEAL FiberMASTER TM fiber optic testing kit allows the user to measure absolute power and calculate the loss of fiber optic links at several wavelengths. Product features include multiple wavelength measurement capability, power display in dBm and mW, loss display in dB, auto power off, etc.

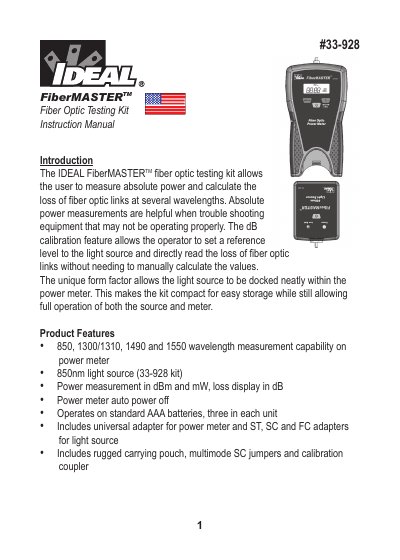

The IDEAL FiberMASTER 33-928 Fiber Optic Testing Kit is designed to measure absolute power and calculate loss in fiber optic links at multiple wavelengths, including 850, 1300/1310, 1490, and 1550 nm. The kit features a compact form factor that allows the light source to dock neatly within the power meter, facilitating easy storage and full operation of both components. It operates on standard AAA batteries and includes various adapters and jumpers for versatile connectivity.
| Wavelength measurement capability | 850, 1300/1310, 1490, 1550nm |
|---|---|
| Detector type | InGaAs |
| Measurement Range | -60 to +3dBm |
| Power Supply | AAA Alkaline Battery x 3 |
| Operating Time (Power Meter) | 360 hours |
| Operating Temperature | -10 to +60°C |
| Light Source Wavelength | 850nm LED |
| Light Source Output Power | -6 to -7 dBm |
The kit supports measurements at 850, 1300/1310, 1490, and 1550 nm wavelengths.
The power meter operates for 360 hours on three AAA alkaline batteries.
Users must not look inside the optical fiber port when the FiberMASTER is operating to prevent permanent vision damage.
