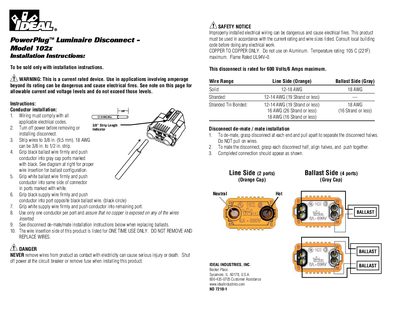

This document is the installation instructions for PowerPlug™ Luminaire Disconnect 102x
This document provides installation instructions for the Ideal Industries PowerPlug Luminaire Disconnect, Model 102x. It includes critical safety warnings regarding electrical ratings and proper wire stripping and insertion techniques for both ballast and supply wires. The guide specifies that the device is rated for a maximum of 600 Volts and 6 Amps and must be used with copper conductors only, not aluminum.
| Maximum Voltage | 600 Volts |
|---|---|
| Maximum Current | 6 Amps |
| Temperature Rating | 105 C (221F) |
| Flame Rating | UL94V-0 |
| Compatible Material | Copper |
No, the device is designed for copper conductors only.
No, the wire insertion side is listed for one-time use only.
The maximum temperature rating is 105 C (221F).
