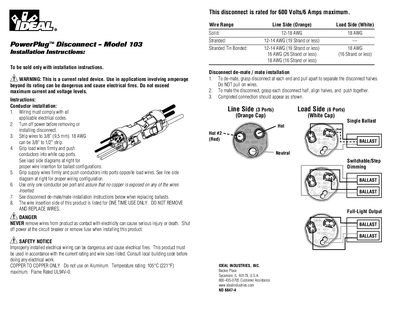

This document provides installation instructions for the PowerPlug™ Disconnect - Model 103, highlighting conductor installation, current and voltage limitations, and safety precautions.
This document provides installation instructions for the PowerPlug™ Disconnect (Model 103), a current-rated electrical device. It includes critical safety warnings regarding amperage limits, voltage ratings, and proper power shut-off procedures before installation.
The guide details conductor installation steps, specifying wire stripping lengths and port usage for line side and load side connections. It also describes the de-mate/mate procedure for replacing ballasts and lists compatible wire gauges for solid and stranded conductors.
| Maximum Voltage | 600 Volts |
|---|---|
| Maximum Current | 6 Amps |
| Temperature Rating | 105°C (221°F) |
| Flame Rating | UL94V-0 |
| Material Compatibility | Copper only |
The device is rated for a maximum of 6 Amps.
No, the instructions state to use copper-to-copper connections only and not to use it on Aluminum.
No, the product is listed for one-time use only and wires should not be removed and replaced.
