PowerPlug™ Luminaire Disconnect - Model 102 is a current rated device. Use in applications involving amperage beyond its rating can be dangerous and cause electrical fires. The product is easy to install, and the power should be turned off before removing or installing the disconnect. Wiring must comply with electrical codes. The product is for one-time use only, and wires should not be removed or replaced. Safety precautions should be taken when installing electrical wiring.

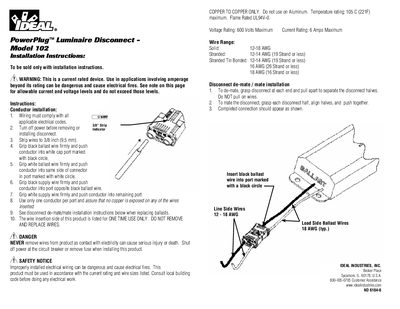

This document provides installation instructions for the PowerPlug Luminaire Disconnect, Model 102. It details conductor installation steps, including stripping wires to 3/8 inch (9.5 mm) and inserting black and white ballast and supply wires into specific ports marked with circles.
The guide includes critical safety warnings regarding current ratings, voltage limits (600 Volts Maximum), and wire types (Copper only). It also describes the de-mate and mate procedures for replacing ballasts and specifies that the wire insertion side is for one-time use only.
| Maximum Voltage Rating | 600 Volts Maximum |
|---|---|
| Maximum Current Rating | 6 Amps Maximum |
| Temperature Rating | 105 C (221F) maximum |
| Flame Rating | UL94V-0 |
The maximum voltage rating is 600 Volts.
No, the instructions state to use copper only and not on Aluminum.
No, it is listed for one-time use only and wires should not be removed and replaced.
