This manual is for the 30-1186 PowerPlug™ Disconnect - Model 186 installation. The product is a current-rated device, and it is dangerous to use it in applications involving amperage beyond its rating. During the installation, you need to turn off the power first, strip the wire to 3/8 inch (9.5mm), and then connect the wire to the port.

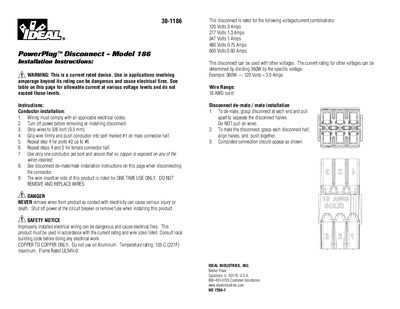

This document provides installation instructions for the Ideal Industries PowerPlug Disconnect Model 186. It includes critical safety warnings regarding current ratings and electrical codes, as well as specific steps for conductor installation and connector mating.
| Voltage/Current Rating (120V) | 120 Volts 3 Amps |
|---|---|
| Voltage/Current Rating (277V) | 277 Volts 1.3 Amps |
| Voltage/Current Rating (347V) | 347 Volts 1 Amps |
| Voltage/Current Rating (480V) | 480 Volts 0.75 Amps |
| Voltage/Current Rating (600V) | 600 Volts 0.60 Amps |
| Wire Range | 18 AWG solid |
| Temperature Rating | 105 C (221F) maximum |
| Flame Rating | UL94V-0 |
No, this disconnect is for copper to copper only. Do not use on Aluminum.
No, the wire insertion side is listed for ONE TIME USE ONLY.
Divide 360W by the specific voltage (e.g., 360W / 120 Volts = 3.0 Amps).
