BGA2001 is a silicon MMIC amplifier produced by Philips. It features low current, low voltage, very high power gain, low noise figure, integrated temperature compensated biasing, combined supply and RF output pin. It is used in RF front end, wideband applications, radar detectors, low noise amplifiers, satellite television tuners (SATV), high frequency oscillators.

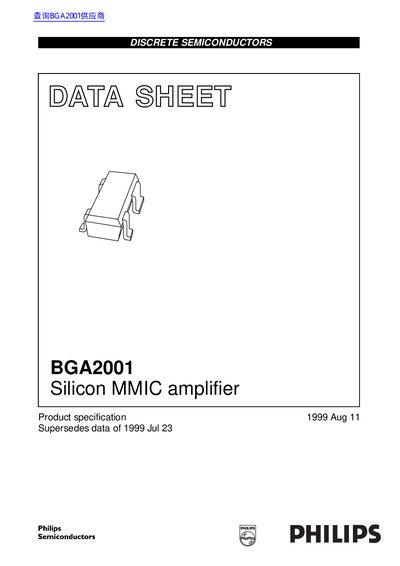

The document describes the Philips BGA2001, a discrete semiconductor Silicon MMIC amplifier. It features very high power gain and a low noise figure, with integrated temperature compensated biasing suitable for low voltage applications.
Key specifications include a maximum stable gain of 19.5 dB at 1.8 GHz and a typical noise figure of 1.3 dB under standard conditions. The device is packaged in a plastic, 4-pin dual-emitter SOT343R package.
| DC supply voltage (max) | - 4.5 V |
|---|---|
| Maximum stable gain (typical) | 19.5 dB |
| Noise figure (typical) | 1.3 dB |
| Total power dissipation (max) | - 135 mW |
The maximum supply voltage is 4.5 V.
The maximum total power dissipation is 135 mW.
