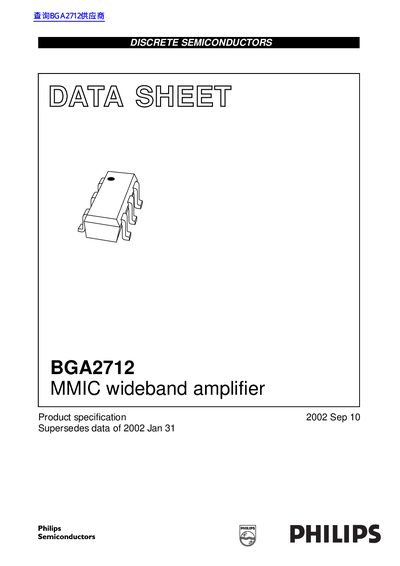

BGA2712 is a wideband amplifier manufactured by PHILIPS. It has a wide frequency range, high gain and low noise characteristics, and is suitable for applications such as LNB IF amplifiers, cable TV systems, ISM and general purposes.
The Philips BGA2712 is a Silicon Monolithic Microwave Integrated Circuit (MMIC) wideband amplifier designed for use in LNB IF amplifiers, cable systems, and general-purpose applications. It features an internal matching circuit in a 6-pin SOT363 SMD plastic package, eliminating the need for external matching components.
| Package Type | 6-pin SOT363 SMD plastic package |
|---|---|
| Supply Voltage | 5 V |
| Supply Current | 12.3 mA |
| Insertion Power Gain (1 GHz) | 21.3 dB |
| Noise Figure (1 GHz) | 3.9 dB |
| Saturated Load Power (1 GHz) | 4.8 dBm |
| Frequency Range (3 dB bandwidth) | 3.2 GHz |
| Gain Flatness | 1 dB |
The maximum DC supply voltage is 6 V.
The maximum supply current is 35 mA.
The maximum power dissipation is 200 mW when the temperature is below 90 °C.
