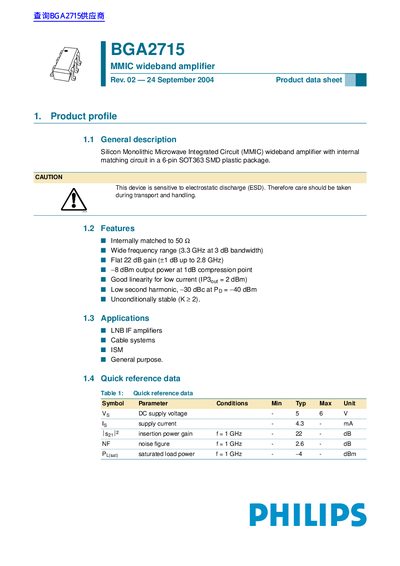

BGA2715 is a microwave integrated circuit from Philips, with an internal matching circuit and a 6-pin SOT363SMD plastic package. It has a 3.3GHz 3dB bandwidth and 22dB gain (+/-1dB up to 2.8GHz).
The BGA2715 is a silicon monolithic microwave integrated circuit (MMIC) wideband amplifier designed for applications such as LNB IF amplifiers, cable systems, and general-purpose use. It features an internal matching circuit and is housed in a 6-pin SOT363 surface-mounted plastic package. The device is internally matched to 50 ohms, eliminating the need for external matching components in many applications.
Key features include a wide frequency range with a 3 dB bandwidth of 3.3 GHz, a flat gain of 22 dB (rising to 23 dB up to 2.8 GHz), and good linearity suitable for low-current operation. The amplifier is unconditionally stable and offers low second harmonic distortion. It operates with a DC supply voltage between 4.5 V and 5.5 V.
| Package type | 6-pin SOT363 SMD plastic package |
|---|---|
| Noise figure (1 GHz) | 2.6 dB typical |
| Maximum drive power | -10 dBm |
| Bandwidth (3 dB) | 3.3 GHz |
The device is available in a 6-pin SOT363 SMD plastic package.
No, the device is internally matched to 50 ohms and does not need external matching.
For applications above 100 MHz, the value should not exceed 100 pF; for frequencies below 100 MHz, the value should be increased.
