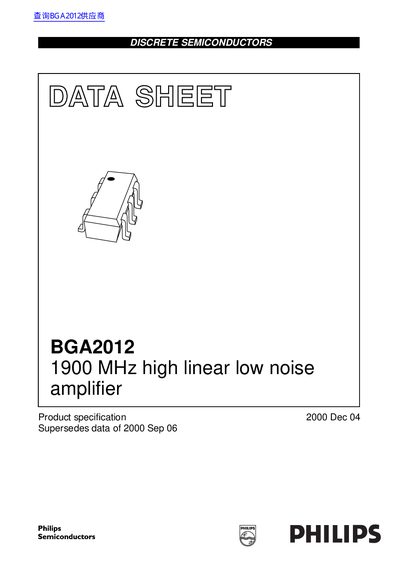

This document describes the features and characteristics of the BGA2012 1900 MHz high linear low noise amplifier.
The document describes the Philips BGA2012, a silicon monolithic microwave integrated circuit (MMIC) amplifier designed for low voltage applications. It features high linearity and power gain with an integrated temperature compensated biasing system. The device is housed in a 6-pin SOT363 plastic surface-mount package.
| Operating Frequency | 1900 MHz |
|---|---|
| Supply Voltage (DC) | 3 V to 4.5 V |
| Supply Current | 7 mA typical |
| Noise Figure | 1.7 dB typical |
| Package Type | 6-pin SOT363 plastic SMD package |
It is a silicon monolithic microwave integrated circuit amplifier designed for low voltage applications, such as in CDMA or DECT front ends.
The maximum DC supply voltage is 4.5 V.
The total power dissipation is 70 mW when the junction temperature is less than 100 °C.
