BGA2771 is a MMIC wideband amplifier produced by Philips Semiconductors. This product has internal matching, wide frequency range, very flat gain, high output power, high linearity and unconditional stability. It is suitable for cable systems, LNB IF amplifiers, general purposes and ISM applications.

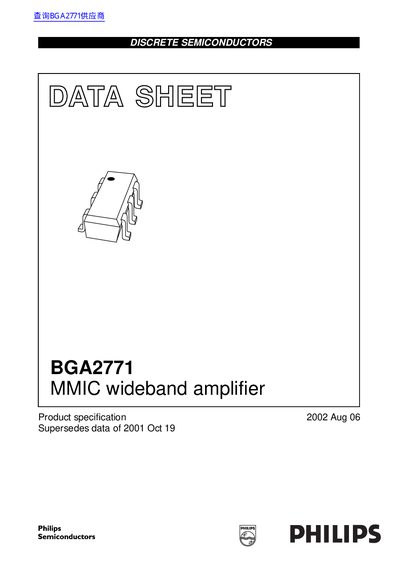

The document is a product specification sheet for the BGA2771, an internally matched MMIC wideband amplifier designed in a 6-pin SOT363 surface-mount package. Key features include a very flat gain profile, high output power, and unconditionally stable operation across a wide frequency range.
| DC supply voltage (Vs) | 3 V |
|---|---|
| DC supply current (Is) | 33.3 mA |
| Insertion power gain at 1 GHz | 21.4 dB |
| Noise figure at 1 GHz | 4.5 dB |
| Saturated load power at 1 GHz | 13.2 dBm |
| Package type | 6-pin SOT363 SMD plastic package |
The typical DC supply voltage (Vs) is 3 V.
No, the device is internally matched to 50 Ω and does not need any external matching.
It is suitable for cable systems, LNB IF amplifiers, general purpose use, and ISM applications.
