This document describes the features of the BGA2776 MMIC wideband amplifier, including internal matching, very wide frequency range, very flat gain, high gain, high output power, and unconditional stability. It is suitable for cable systems, LNB IF amplifiers, general purpose applications, and ISM.

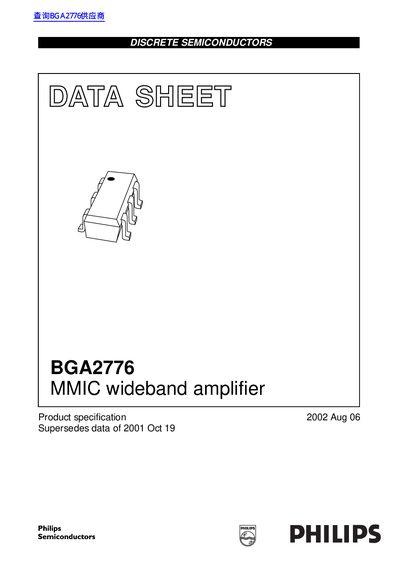

The document describes the BGA2776, an internally matched MMIC wideband amplifier available in a 6-pin SOT363 plastic package. Key features include a very wide frequency range (up to 3 GHz), high gain of approximately 23.2 dB at 1 GHz, and unconditional stability.
| DC supply voltage (Vs) | 5 V |
|---|---|
| DC supply current (Is) | 24.4 mA |
| Insertion power gain at 1 GHz | 23.2 dB |
| Noise figure at 1 GHz | 4.9 dB |
| Saturated load power at 1 GHz | 10.5 dBm |
| Maximum drive power (Pp) | -10 dBm |
The typical DC supply voltage (Vs) is 5 V.
Yes, it has an internal matching circuit in a 6-pin SOT363 package.
The 3 dB bandwidth at 1 GHz is 2.8 GHz.
