The BGA2717 is a MMIC wideband amplifier from Philips Semiconductors. It is a 6-pin SOT363 SMD plastic package with internal matching circuit. It has a working frequency range of 3.2 GHz, a gain of 24 dB, an output power of -2.5 dBm, a second harmonic of -38 dBc, a noise figure of 2.3 dB, and unconditional stability.

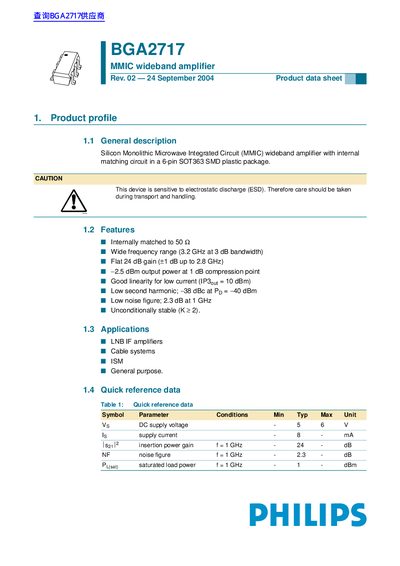

The Philips BGA2717 is a silicon monolithic microwave integrated circuit (MMIC) wideband amplifier housed in a 6-pin SOT363 surface-mounted device (SMD) plastic package. It features an internal matching circuit and is designed for applications such as LNB IF amplifiers, cable systems, and general-purpose use. The device offers a wide frequency range with a 3 dB bandwidth of 3.2 GHz and a flat gain of 24 dB up to 2.8 GHz.
| Frequency range (3 dB bandwidth) | 3.2 GHz |
|---|---|
| Gain (typical) | 24 dB |
| Output power (1 dB compression) | -2.5 dBm |
| Noise figure (typical at 1 GHz) | 2.3 dB |
| Package type | 6-pin SOT363 |
The noise figure is typically 2.3 dB at 1 GHz.
The maximum DC supply voltage is 6 V.
The maximum supply current is 15 mA.
The maximum total power dissipation is 200 mW.
